Contact Angle and Surface Tension Analyzer
Published: 3/19/2021
Bench-top instrument for measuring liquid surface/interfacial tension and static contact angle using the detachment method with displacement force sensing. Suitable for wetting analysis of coatings, inks, surfactants, water treatment solutions, agrochemicals, plating baths, cosmetics, and transformer oil in compliance with ISO 8296, GB/T 14216, ISO 6295, and ASTM D971.
Product Description

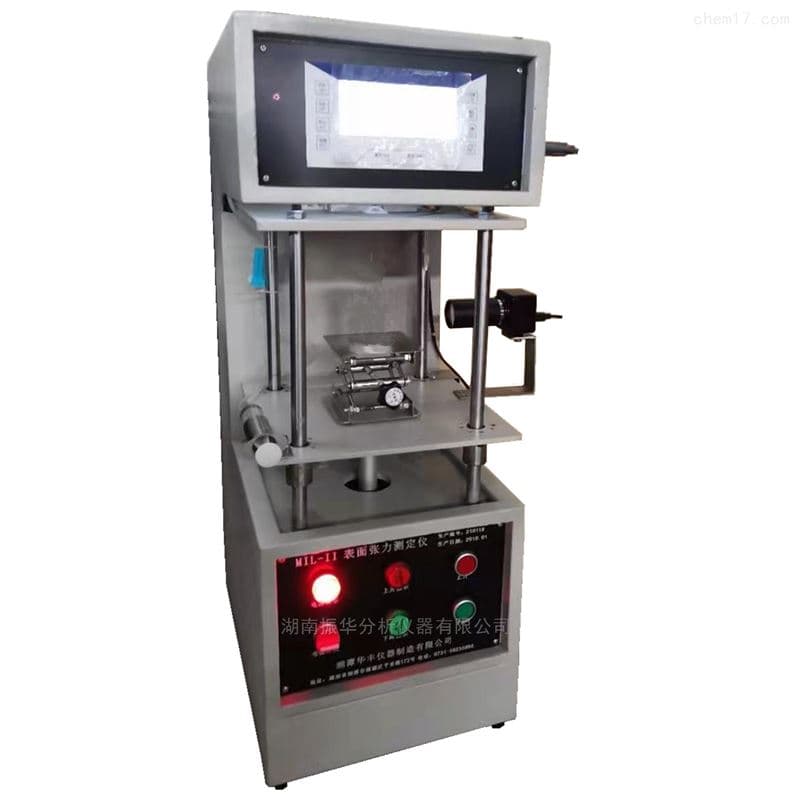

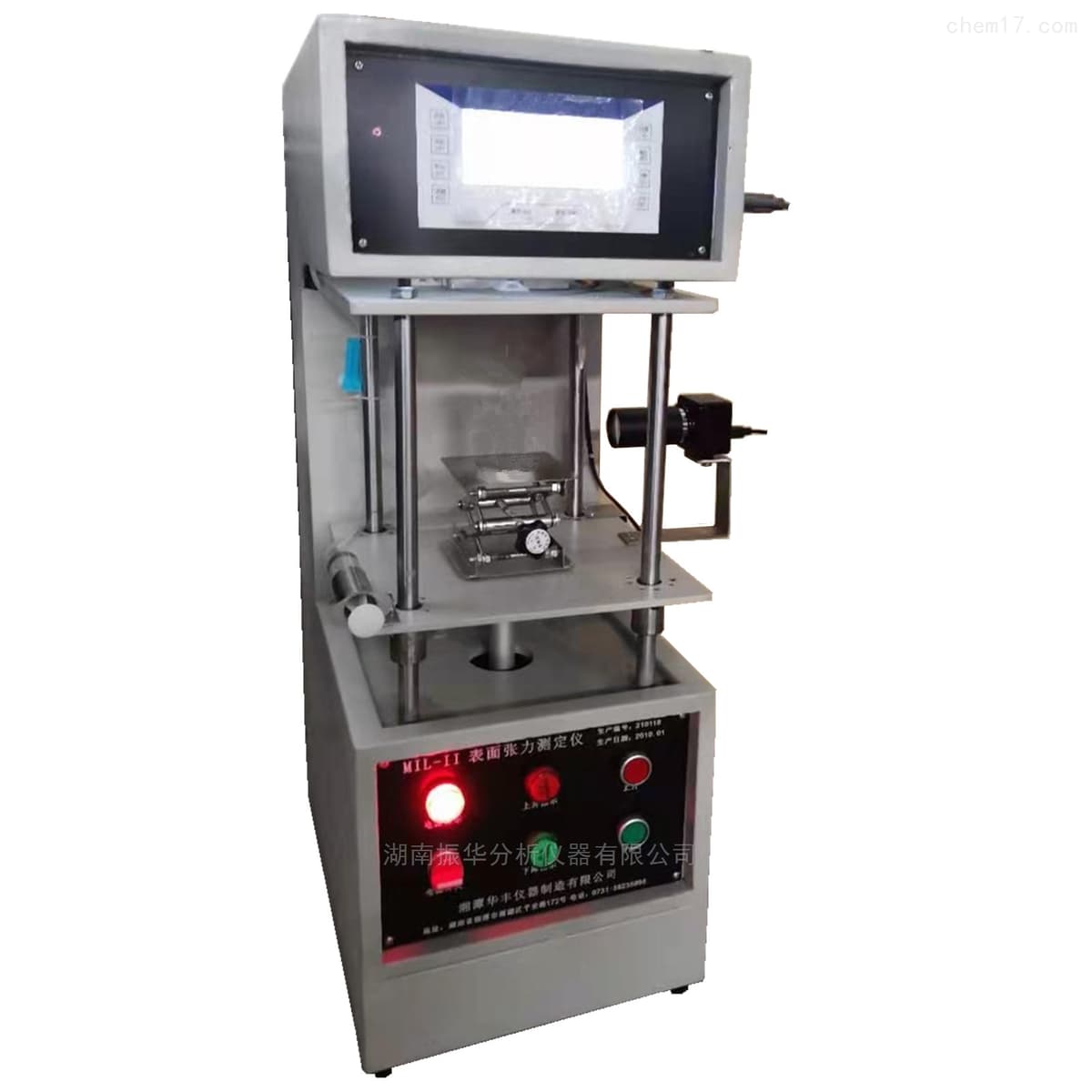

The MIL-II is designed to quantify liquid surface and interfacial tension and to perform contact angle measurements for wetting analysis on films and solid surfaces. It applies a Hall-sensor-based displacement force transducer within a gradient magnetic field to convert mechanical force to electrical signal for non-electrical quantity measurement, enabling accurate tension determination by the detachment method.
The system supports CCD-based imaging for automated contact angle calculation and provides software for automated data storage and report printing. It offers both manual and automatic sample dosing and lift options to accommodate different testing workflows.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range (Surface/Interfacial Tension) | 1–100 mN/m |
| Accuracy | ±0.1 mN/m |
| Repeatability Error | <0.3% |
| Sampling Rate | 50 data/s |
| Contact Angle Range | 0–180° |
| Contact Angle Resolution | ±0.1° |
| Imaging | CCD >5 megapixels; frame rate ≥30 fps |
| Stand Vertical Travel (Auto/Manual Selectable) | 100 mm |
| Temperature Range | Ambient (room temperature) |
| Dosing Modes | Manual and automatic |
| Interfaces | 2 × USB |
| Power Supply | 85–264 VAC, 40–60 Hz |
| Power Consumption | 40 W (operation), 5 W (preheat) |
| Sample Cup Diameters (Optional) | 50 mm, 70 mm, 100 mm |
| Standards | ISO 8296:2003; GB/T 14216-2008; ISO 6295:1983; ASTM D971 |
| Software Functions | Automatic data storage; report printing |
| Application Notes | Capable of measuring surface tension coefficients for liquids of different concentrations |
