Floor Drain Pressure Resistance Test Apparatus
Published: 3/1/2021
Apparatus for testing floor drains in accordance with GB/T 27710-2011 to evaluate pressure resistance, sealing, and anti-backflow performance. Features motorized pressure loading with electronic measurement, digital display, peak hold, overload protection, and power-off data retention.
Product Description

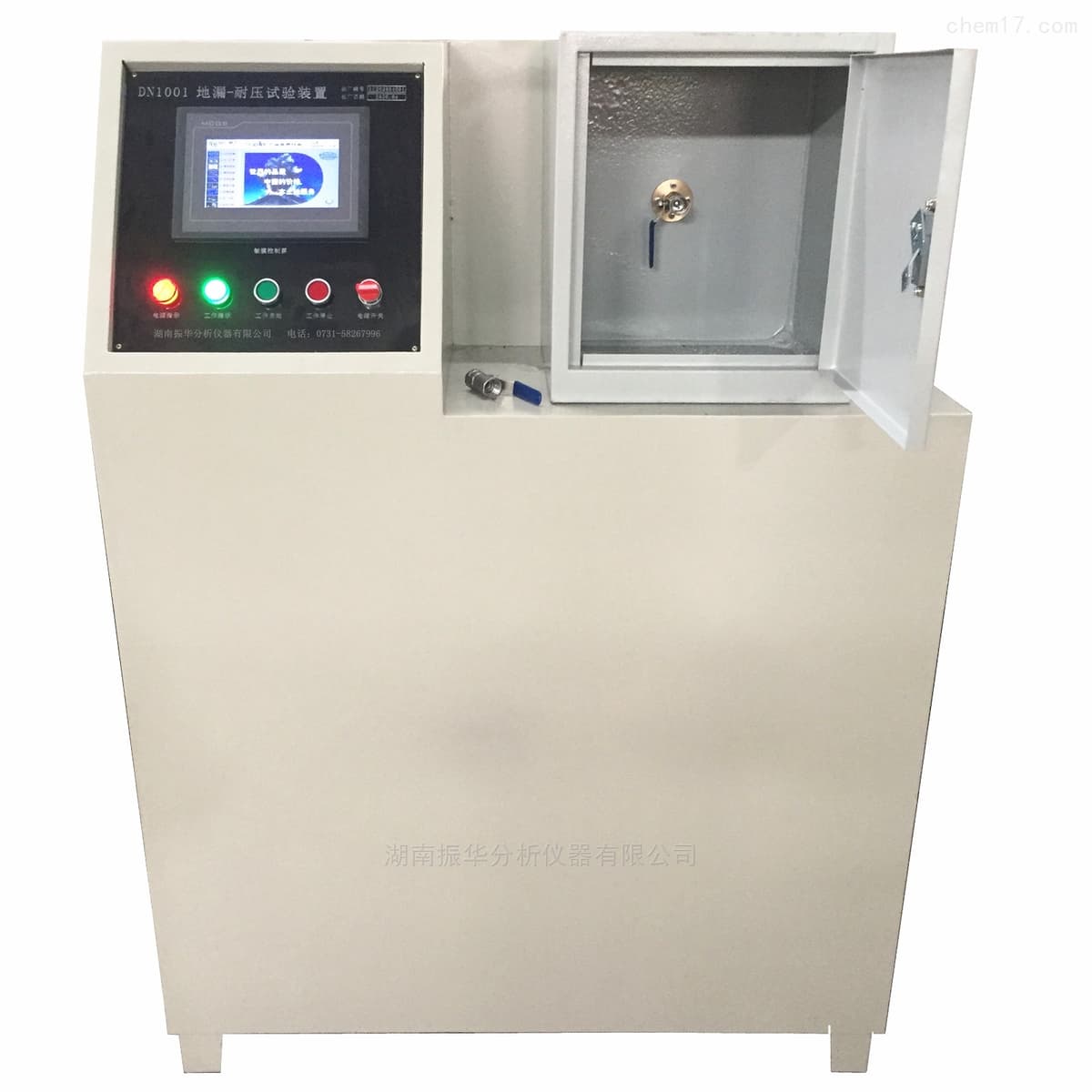

The DN1001 is designed to verify the pressure resistance, sealing integrity, and anti-backflow performance of floor drains per GB/T 27710-2011. It uses electric loading and electronic force/pressure measurement, providing digital indication, maximum value hold, overload protection, and data retention upon power loss.
Typical operation involves mounting the specimen to the test station, connecting the lines, powering the unit, setting target pressure and hold time on the touchscreen, and starting the test. Example settings include 0.2 MPa for 30 s for pressure resistance, 0.04 MPa for 600 s for sealing, and 0.04 MPa for 1800 s for anti-backflow; after each run the pump is stopped, pressure is released, and the sample is removed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Compliance | GB/T 27710-2011 |
| Test Functions | Pressure resistance; Sealing performance; Anti-backflow performance |
| Pressure Range | 0.02–0.6 MPa |
| Pressure Accuracy | ±0.001 MPa |
| Medium Temperature | Ambient |
| Ambient Temperature | Ambient |
| Number Of Stations | 1 |
| Power Supply | ~380 V ±10%, 50 Hz |
| Power Rating | 1.5 kW |
| Controller | Touchscreen operation with digital display and peak hold |
| Protection | Overload protection; Power-off data retention |
| Pump Control | Electric pressure pump start/stop via panel |
| Example Test Setting (Pressure Resistance) | 0.2 MPa, 30 s hold |
| Example Test Setting (Sealing) | 0.04 MPa, 600 s hold |
| Example Test Setting (Anti-Backflow) | 0.04 MPa, 1800 s hold |
| Main Unit Dimensions (W×D×H) | 1000 × 500 × 1380 mm |
