Sanitary Ceramic Thermal Shock Tester
Published: 3/3/2022
Automated tester for evaluating sanitary ceramics under alternating hot and cold water to assess thermal shock resistance. Designed for compliance with AS 3588-1996, EN 14688-2015, EN 14516-2006, and EN 13310-2015 test methods.
Product Description

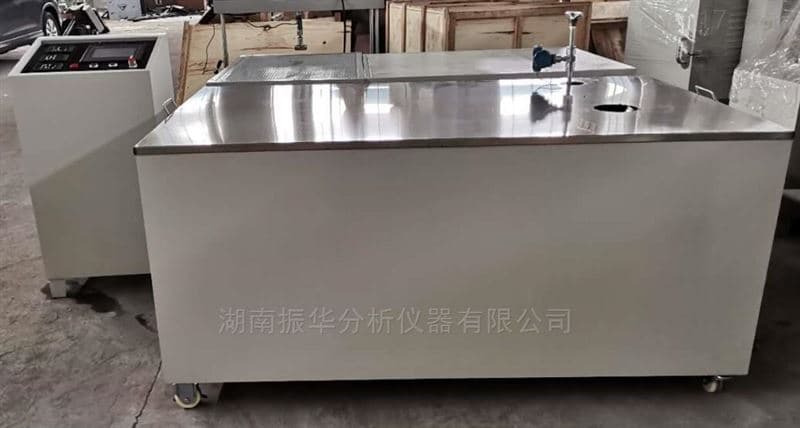

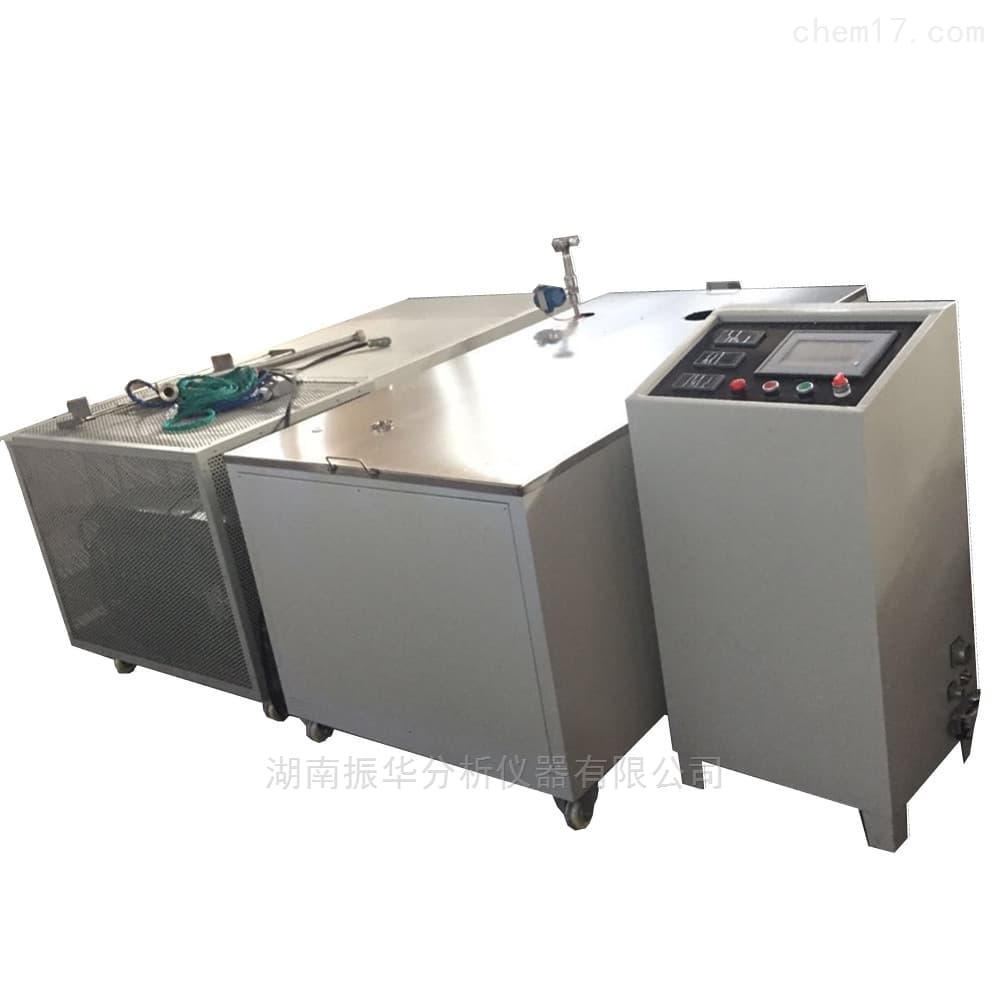

The SQ005B Sanitary Ceramic Thermal Shock Tester simulates rapid temperature alternation by cycling hot and cold water over ceramic products such as wash basins, sinks, and baths. It verifies product durability against thermal stress and validates conformity to international sanitary ware standards.
The system features touch-screen control and fully automated operation, enabling precise setting of temperature, pressure, and flow for repeatable test sequences. Integrated hot and cold water circuits with controlled tanks maintain stable setpoints and allow accurate pressure and flow measurement during testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cold Water Pump Static Pressure | 0.05–0.5 MPa, Accuracy: Class 1.0 |
| Hot Water Pump Static Pressure | 0.05–0.5 MPa, Accuracy: Class 1.0 |
| Flow Measurement Range | 0.05–0.6 L/s, Accuracy: Class 1.0 |
| Power Supply | 380 VAC, 36 kW |
| Cold Water Temperature Control Range | Ambient to 10 ±1 °C |
| Hot Water Temperature Control Range | Ambient to 90 ±1 °C |
| Cold Water Tank Volume | 300 L |
| Hot Water Tank Volume | 350 L |
| Standards Compliance | AS 3588-1996; EN 14688-2015; EN 14516-2006; EN 13310-2015 |
| Control Interface | Touch screen |
| Operation Mode | Fully automatic |
