Ceramic Tile Chemical Resistance Test Apparatus
Published: 1/2/2025
Apparatus for evaluating the chemical resistance of ceramic tiles according to GB/T 3810.13 and ISO 10545-13. Suitable for laboratories conducting performance grading and reporting for glazed and unglazed tiles.
Product Description

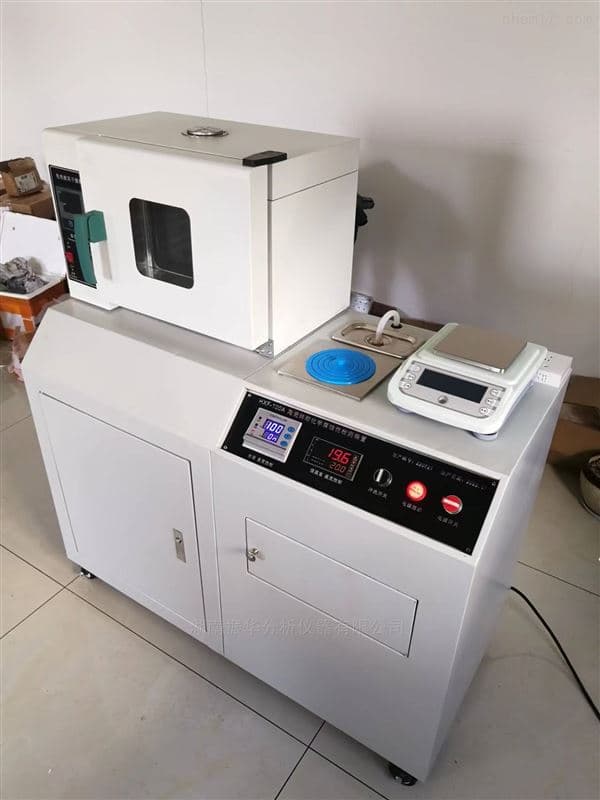

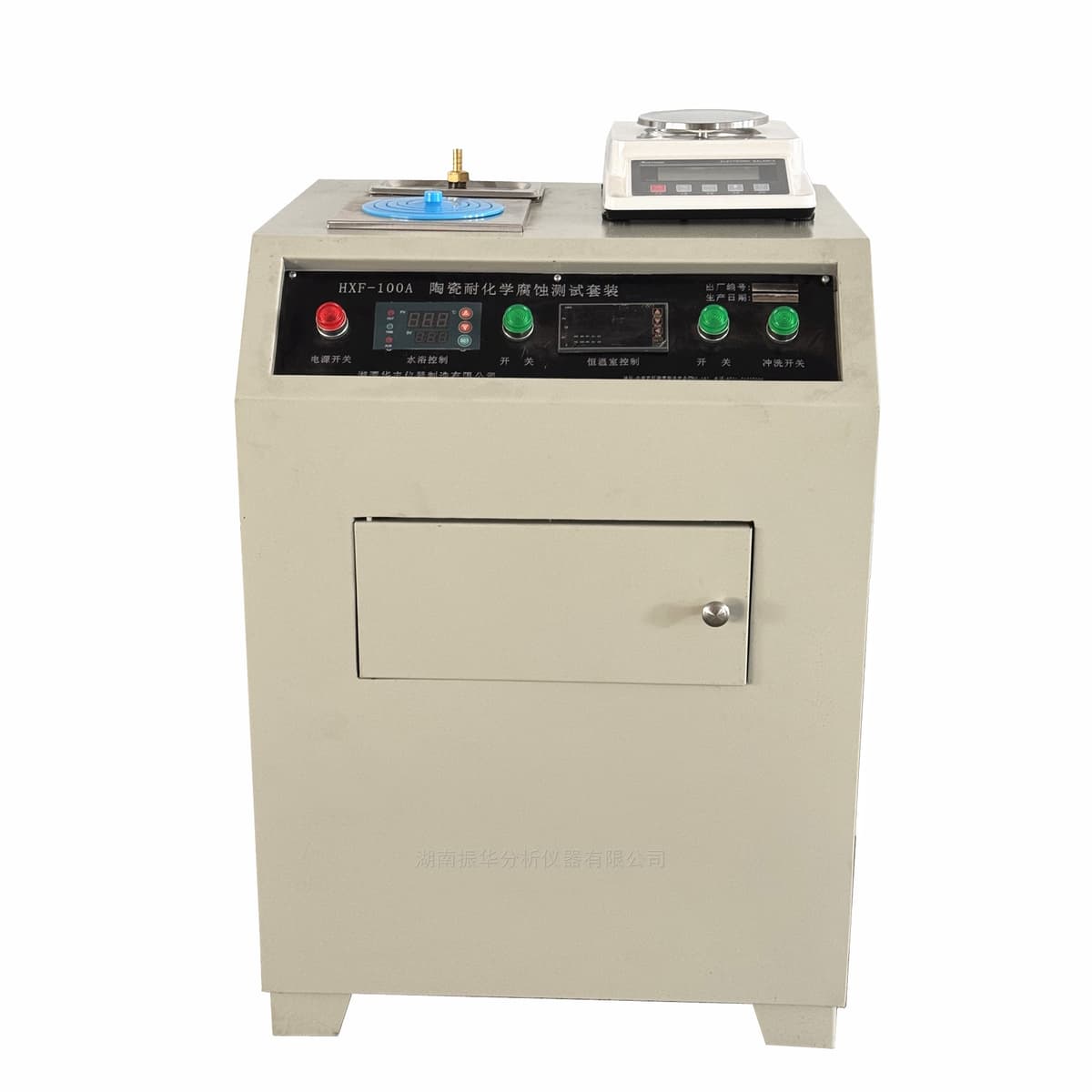

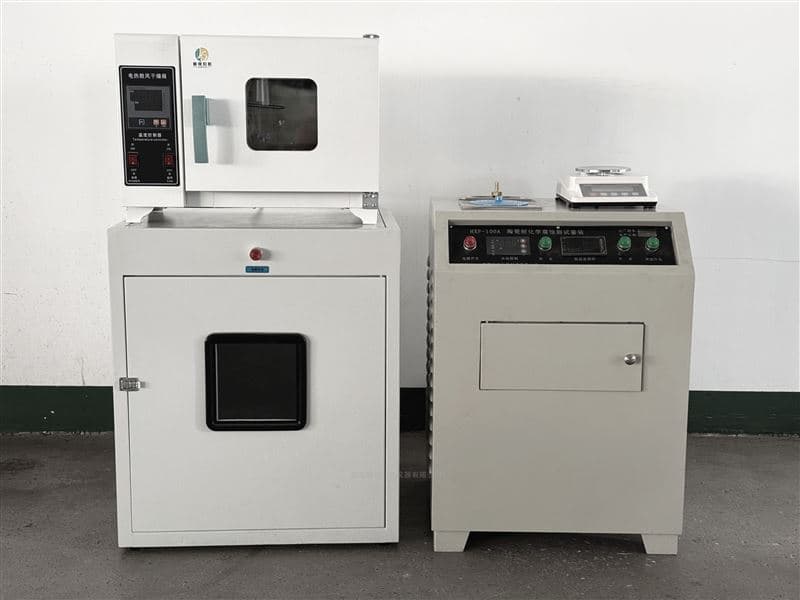

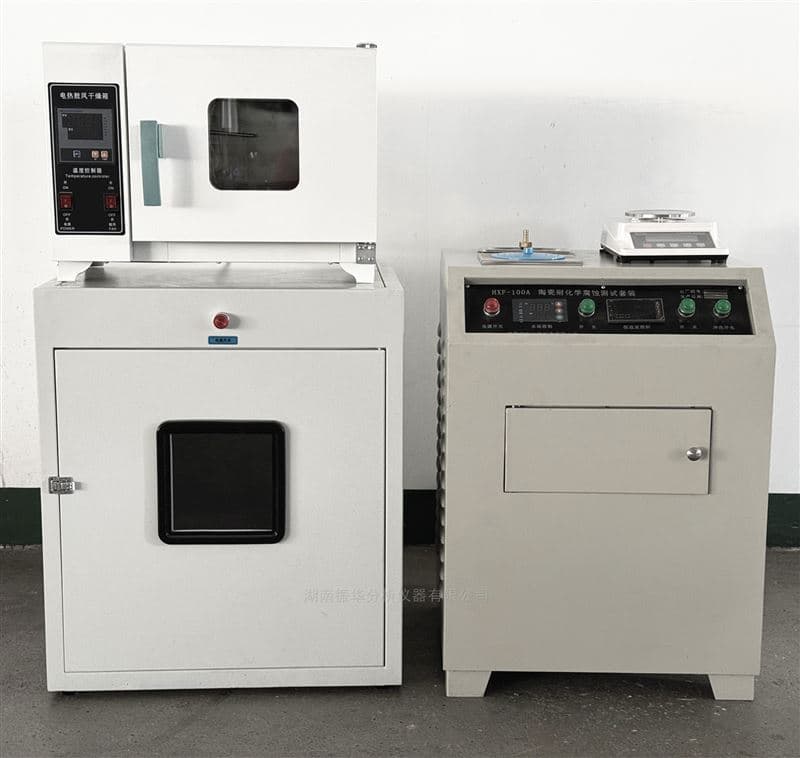

The HXF-100A Ceramic Tile Chemical Resistance Test Apparatus is designed to assess the resistance of ceramic tiles to chemical attack and to assign a performance grade in line with GB/T 3810.13 and ISO 10545-13. The system supports specimen preparation, controlled chemical exposure, rinsing, drying, and standardized visual assessment under specified lighting.
Typical use cases include quality control, certification testing, and R&D evaluation of tiles in contact with acidic, alkaline, or cleaning reagents. The apparatus integrates time-based automation for test cycles, standardized borosilicate glassware for reagent containment, and ancillary equipment to ensure repeatable and compliant results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB/T 3810.13; ISO 10545-13 |
| Reagent Example | Ammonium chloride solution 100 g/L; other reagents per standard |
| Borosilicate Glass Vessel Volume | 10 L (ISO 3585 compliant) |
| Drying Oven Chamber (Stainless Steel) | 350 × 350 × 350 mm |
| Drying Oven Temperature | 110 ℃ ± 5 ℃ |
| Rinse Tank Volume | 10 L |
| Flush Valve Diameter | φ16 mm |
| Tap Water Rinse | Complies with pressure requirement (per standard) |
| Time Control | Date-based setting; automatic execution |
| Specimen Size (Cut) | 50 × 50 mm |
| Electronic Balance | 2000 g / 0.01 g |
| Illumination For Assessment | 40 W white reflective light source |
| Power Supply | 220 V / 50 Hz |
| Power Consumption | < 1000 W |
| Evaluation And Report | Grading per GB/T 3810.13 with test report |
| Typical Test Duration | 17 days |
