Heat Flow Method Thermal Conductivity Tester
Published: 5/23/2024
The HDRX-II-RL measures thermal conductivity and thermal resistance of diverse materials using the steady-state heat flow method. It supports automated pressure and thickness control for precise testing across a wide temperature range, aligning with ASTM and GB standards.
Product Description

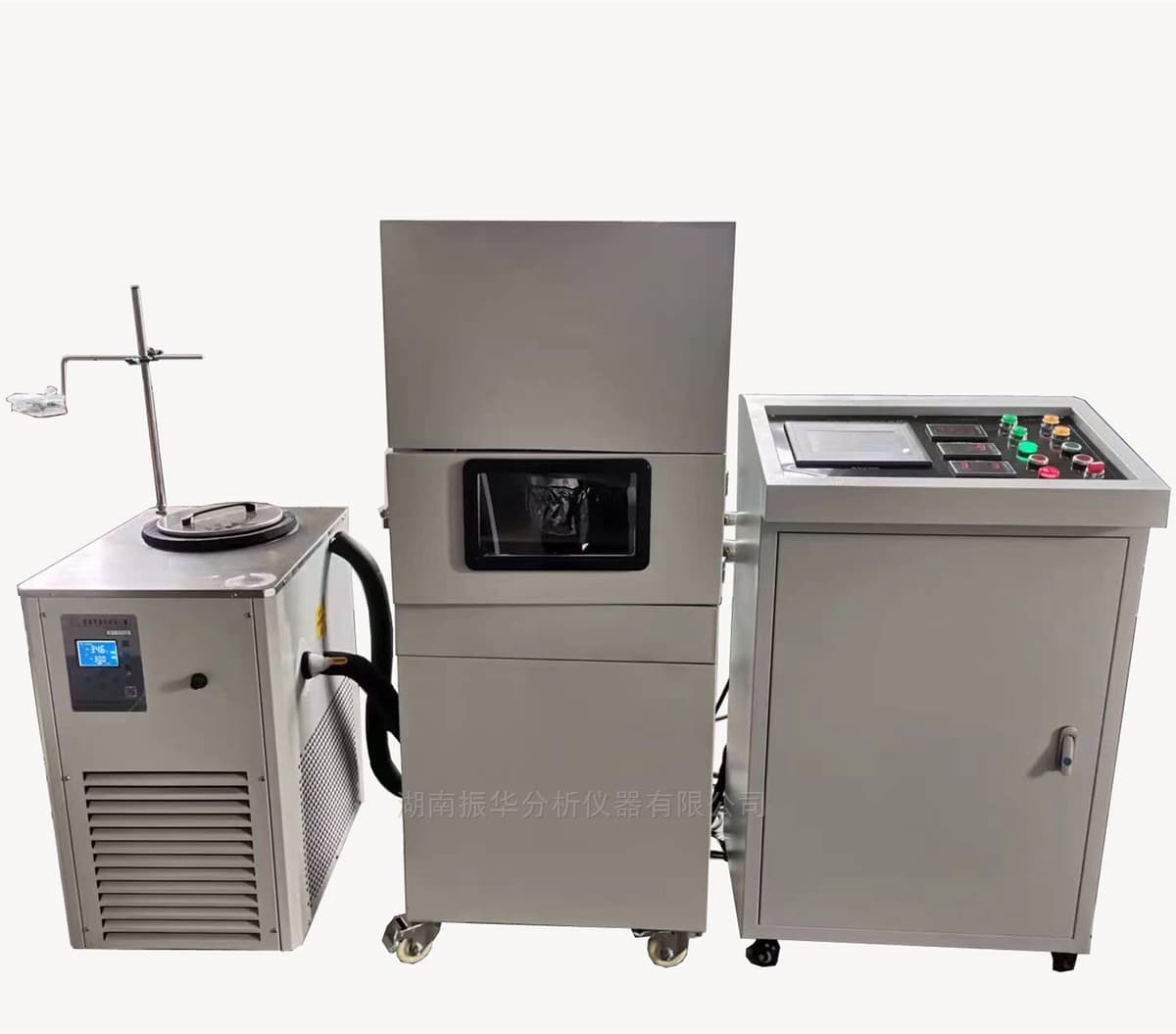

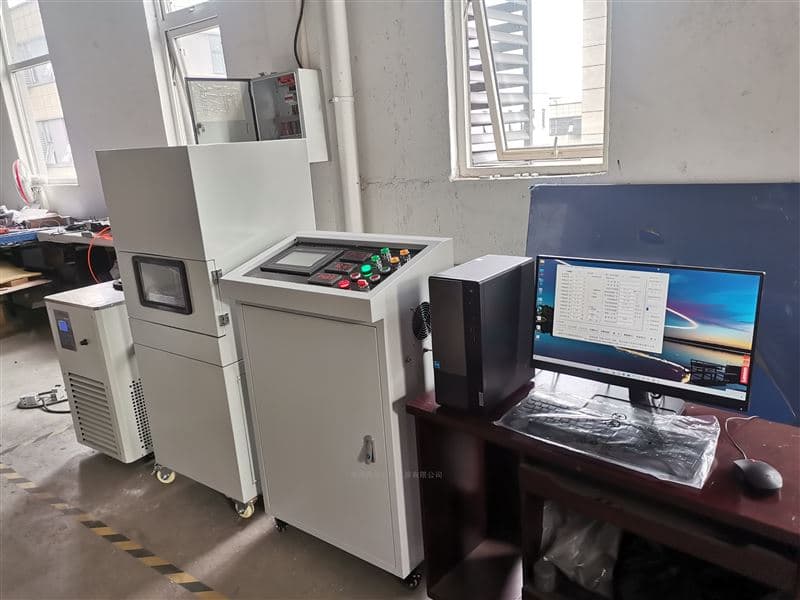

The HDRX-II-RL is a steady-state heat flow method instrument for determining thermal conductivity and thermal resistance of ceramics, glass, refractories, polymer composites, nylon, plastics, silicone rubber, resins, and insulation materials. It implements ASTM D5470 for thermal transmission of thermally conductive electrical insulating materials and references ASTM C518, GB 10295-2008 (heat flow meter method), and GB/T 25261-2018 Appendix A requirements for thermal conductivity measurement.
The system features automated loading and in-situ thickness measurement to enable tests under different pressures while reducing operator-induced error. It supports multilayer techniques for thin films and provides stable temperature control with a cold plate near ambient and a hot plate up to 1000°C, enabling high-temperature evaluations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thermal Conductivity Range (Low K Materials) | 0.00100–5 W/m·K |
| Thermal Conductivity Range (High K Materials) | 3–500 W/m·K (five-decimal precision, selectable) |
| Thermal Conductivity Resolution | 0.01 mW/m·K |
| Thermal Resistance Range | 0.000005–0.05 m²·K/W |
| Measurement Accuracy | Heat flux sensor ±1.5%; Test data ±1.5% |
| Measurement Repeatability | ±1.5% |
| Heat Flux Sensor | Imported (sensitivity better than 17 μV·W/m²; diameter φ30 mm) |
| Cold Plate Temperature | 0.00–99.99 °C; Resolution 0.01 °C (material: high-purity nickel steel) |
| Hot Plate Temperature | Ambient +10 to 1000 °C; Temperature stability 0.1 °C (material: high-purity nickel steel) |
| Specimen Size Options | φ50 × (5–40) mm; 50 × 50 × (5–40) mm |
| High-Temperature Specimen Thickness | 30–40 mm |
| Pressure Control Range | Max 1000 N; Resolution 0.1 N; servo/stepper control; setpoint adjustable |
| Thickness Measurement Range | Max 50 mm; Resolution 1 μm |
| Test Modes | Thermal conductivity under different pressures; Thermal resistance under different pressures; Interfacial contact thermal resistance |
| Software | Fully automated thermal analysis software; Chinese/English interface |
| Operating Conditions | Ambient temperature −5 to 40 °C; Relative humidity 0–95% |
| Power Supply | AC 220 V, 50 Hz |
| Software OS Support | Windows 10 |
