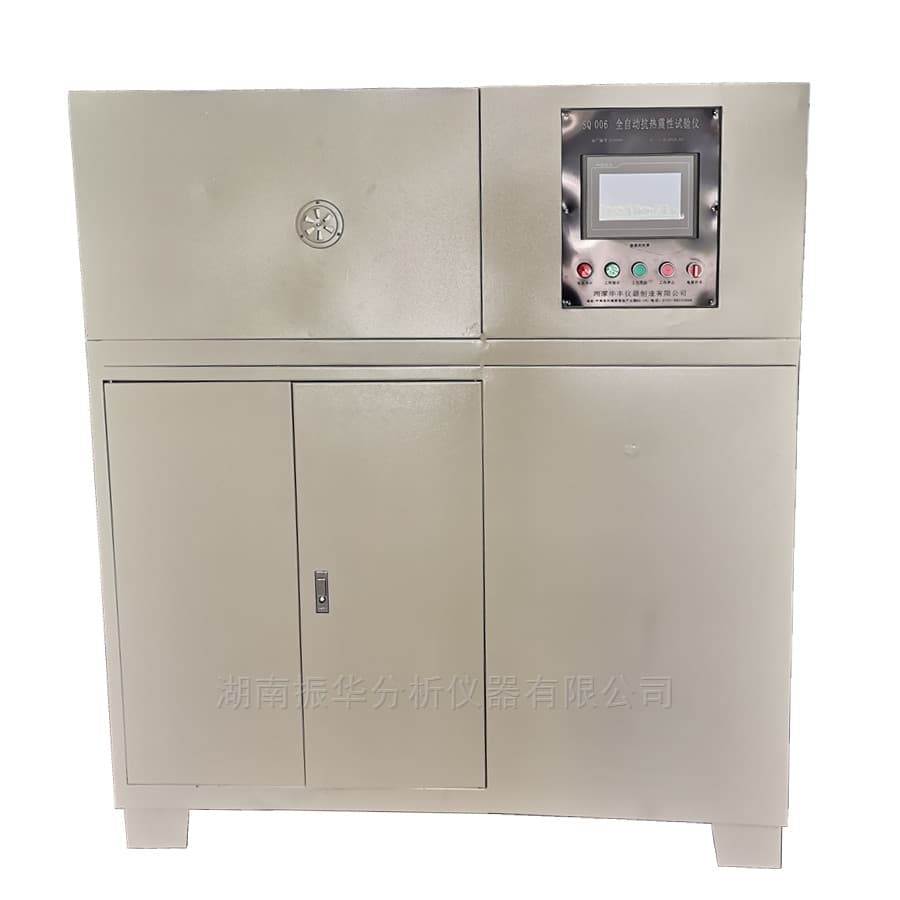

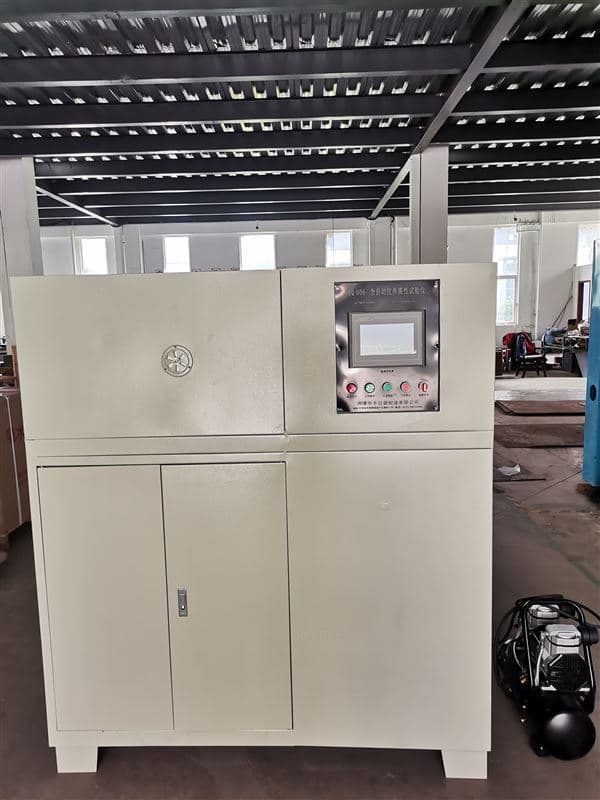

Honeycomb Ceramic Thermal Shock Resistance Tester (Air-Cooled, Fully Automatic)
Published: 3/14/2025
Fully automatic air-cooled tester for evaluating thermal shock resistance of honeycomb ceramics, ceramic tiles, refractories, graphite, and other non-metallic silicate products. Complies with GB/T 25994-2010 and GB/T 3810.9-2016 using immersion or non-immersion methods based on water absorption.
Product Description
The SQ006 system automates the full test cycle for determining thermal shock resistance, from heating to controlled air cooling, minimizing operator intervention and improving repeatability. It is designed for laboratory and production quality control of honeycomb ceramics, ceramic tiles, refractory products, graphite materials, and other non-metallic silicate components.
The instrument provides a touch-screen interface for parameter setup, real-time data display, and process control. Depending on the material’s water absorption, it supports both immersion and non-immersion procedures to meet the specified national standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB/T 25994-2010 (Honeycomb Ceramic Thermal Shock Resistance), GB/T 3810.9-2016 (Ceramic Tiles Thermal Shock Resistance) |
| Maximum Furnace Working Temperature | 500 ℃ |
| Temperature Control Accuracy | ±2 ℃ (at 500 ℃) |
| Effective Chamber Volume (W×D×H) | 350 × 350 × 350 mm |
| Cold Furnace Heat-Up Time (RT To 500 ℃) | 120 min |
| Heated Furnace Maximum Power | 5 kW |
| Timer Range | 0–180 min |
| Air Compressor Capacity | 30 L |
| Air Compressor Power | 1 kW |
| HMI | 10-inch touch-screen industrial controller; SCADA-style interface; Chinese UI; displays test data and allows parameter setting |
| Design | Integrated, small footprint, easy operation |
| Cooling Method | Air-cooled |
| Automation | Fully automatic test cycle |
| Applicable Materials | Honeycomb ceramics, ceramic tiles, refractories, graphite, other non-metallic silicate products |
| Test Methods | Immersion and non-immersion (selected by water absorption) |
