Powder Resistivity Tester
Published: 1/6/2025
Bench-top system for measuring electrical resistivity of carbon and other powder materials under controlled compression. Complies with ISO 10143:1995 and YS/T 587.6 for standardized powder resistivity testing with automated display and data handling.
Product Description

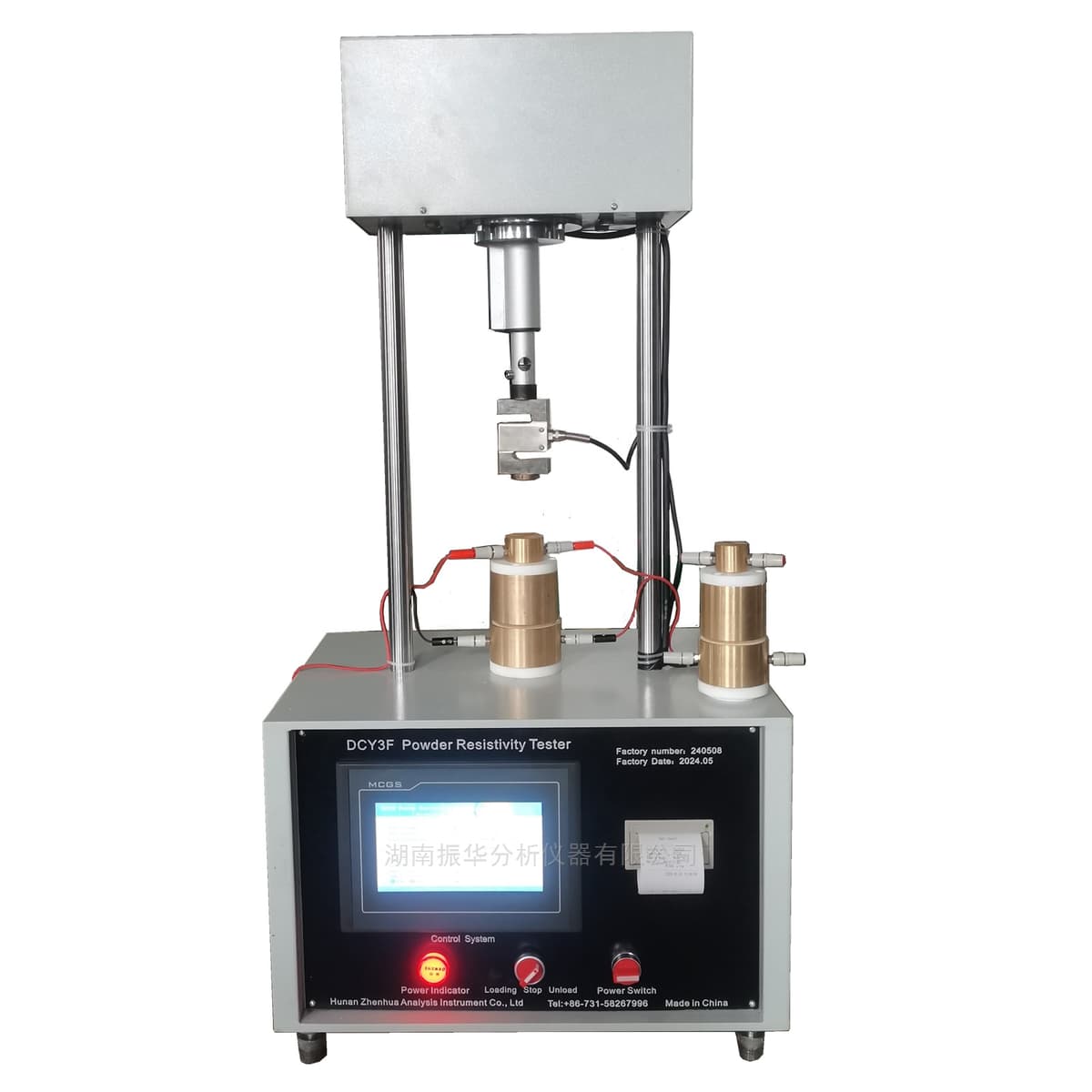

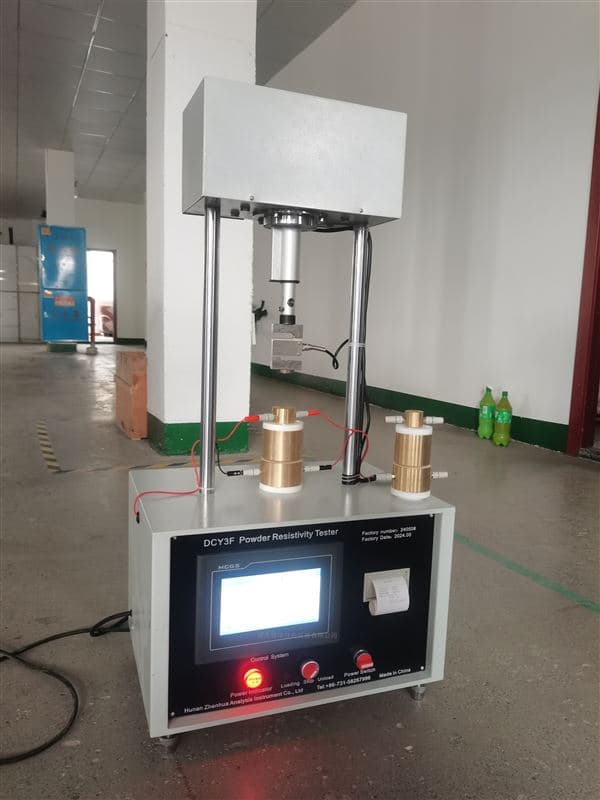

The DCY3F Powder Resistivity Tester measures the electrical resistivity of powder and granular carbonaceous materials by applying a defined compressive load and sourcing a stable current while monitoring voltage drop. A hydraulic drive provides smooth, high-ratio loading to ensure consistent packing density, and a pressure-indicating force gauge enables accurate control of applied pressure.
A high-precision constant current source powers the measurement, with automatic display of current and voltage for straightforward operation. The system supports standardized test geometries and electrode spacings and is equipped with a fully automatic touch-screen measurement and control interface for data processing and printing of test results in accordance with ISO 10143:1995 and YS/T 587.6.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Pressure | 300 kg |
| Maximum Travel | 100 mm |
| Current Output Range | 0–5 A |
| Current Resolution/Accuracy | 0.01 A |
| Voltage Input Range | 0–200 mV |
| Voltage Resolution/Accuracy | 0.01 mV |
| Small Powder Tube Inner Diameter | ≥20 mm |
| Large Powder Tube Inner Diameter | ≥30 mm |
| Small Tube Cross-Sectional Area | ≥314 mm² |
| Large Tube Cross-Sectional Area | ≥700 mm² |
| Distance Between Voltage Terminals (Small Tube) | 10 mm |
| Distance Between Voltage Terminals (Large Tube) | 20 mm |
| Resistivity Measurement Range | 1–1800 μΩ·m |
| Resistivity Calculation | Quick reference table included |
| Standards Compliance | ISO 10143:1995; YS/T 587.6 |
| Load Mechanism | Hydraulic transmission |
| Power Supply For Measurement | High-precision constant current source |
| User Interface | Automatic touch-screen control with data processing and printout |
