Carbon Fiber Insulation Felt Thermal Conductivity Tester
Published: 4/1/2025
High-temperature heat flow meter system for measuring the thermal conductivity of low-conductivity materials such as carbon-based refractories, carbon fiber felts, composites, and insulation bricks/boards. Designed for laboratory research and quality control with automated testing compliant with GB/T 10295 and related standards.
Product Description

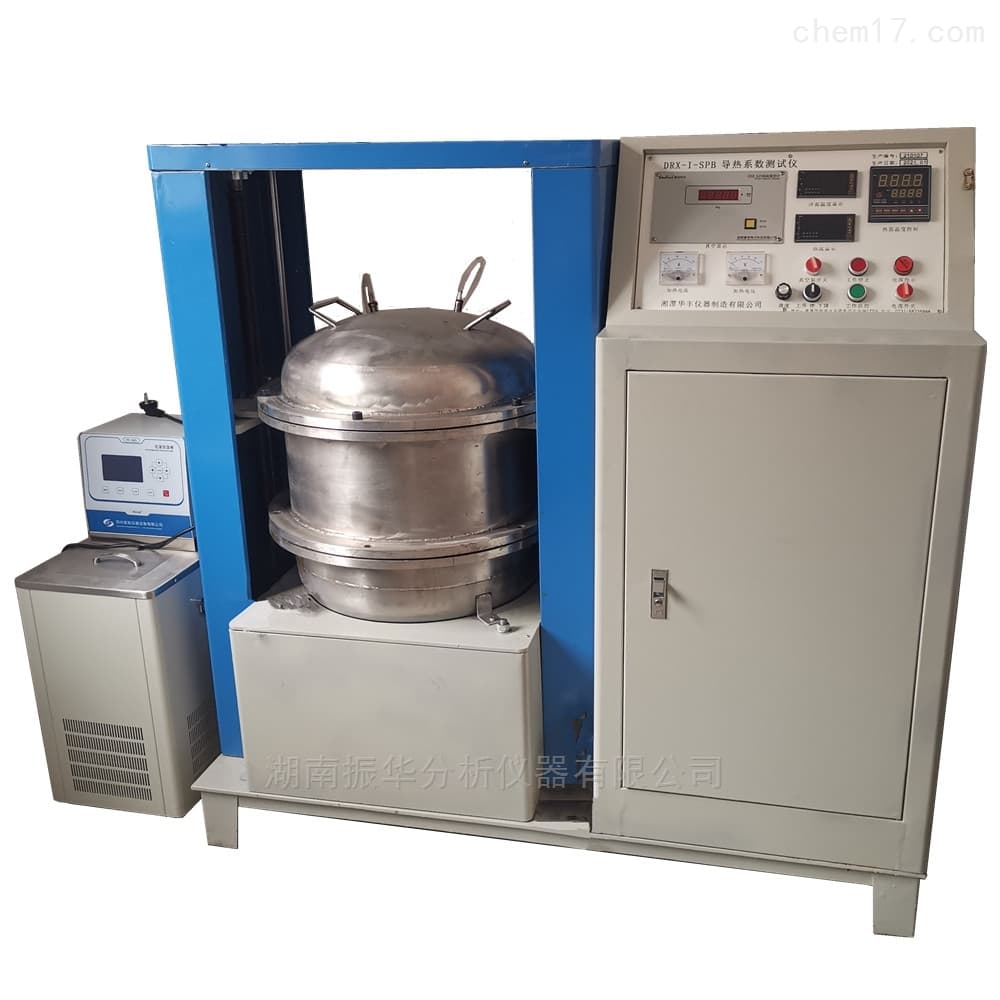

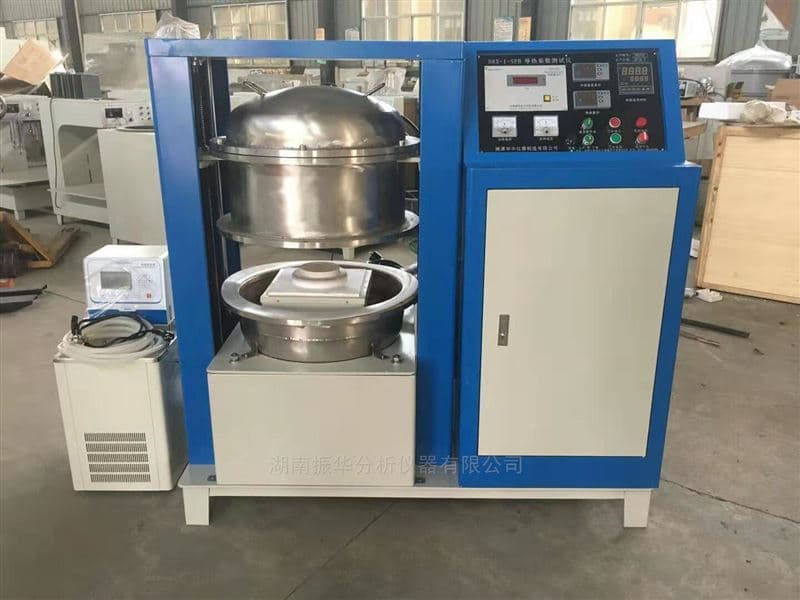

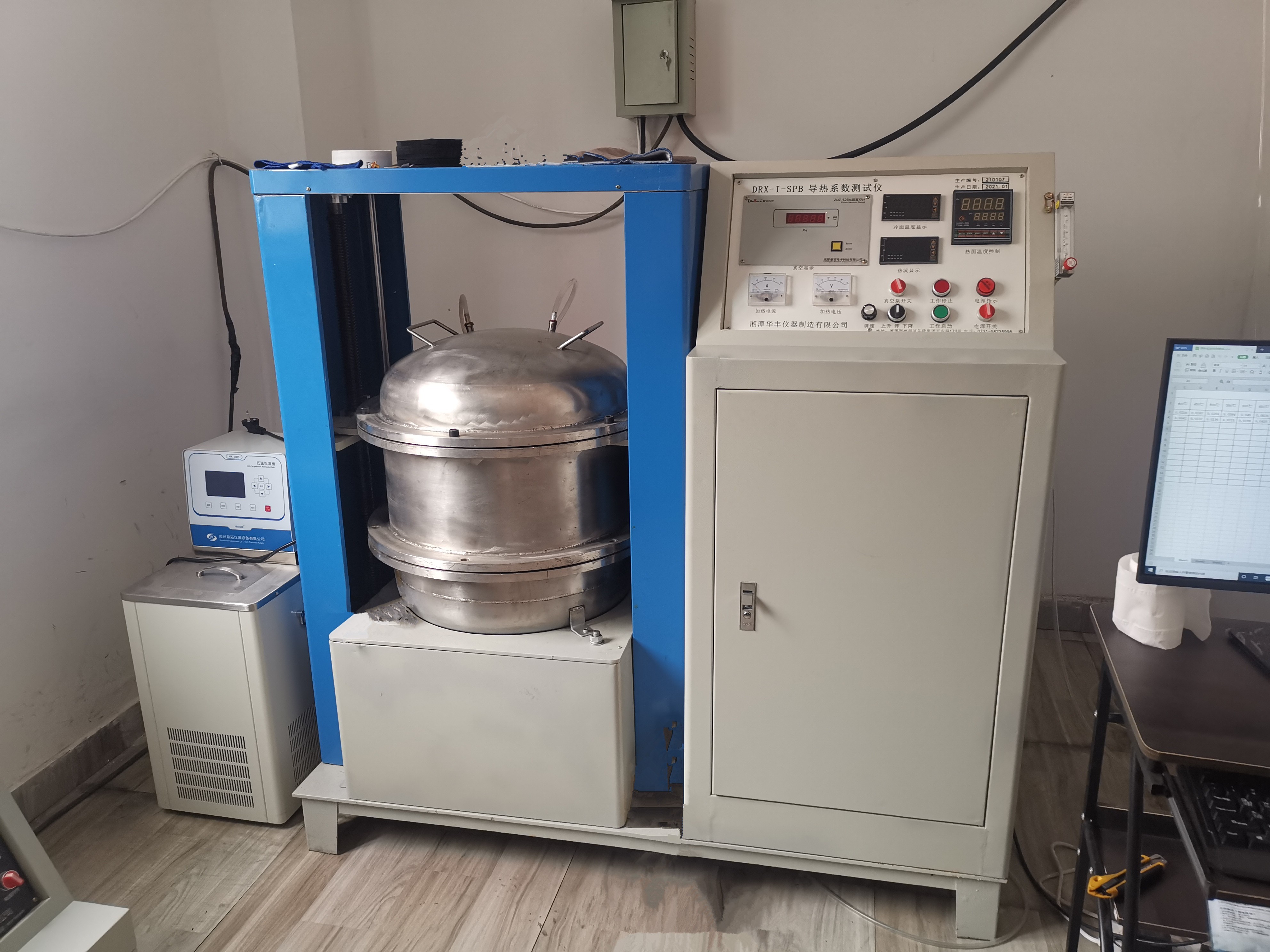

The DRX-II-SPB is a high-temperature thermal conductivity tester based on the heat flow meter method. It is engineered for low-conductivity materials including carbon fiber insulation felts, carbon-containing refractories, refractory ceramic fiber products, composites, and other insulation materials.
The system automates test execution, data acquisition, and display of state points via dedicated analysis software, while also allowing manual operation when required. It supports controlled atmosphere or vacuum testing, uses an imported high-temperature heat flux sensor at the cold side, and employs an 1800-class tungsten-molybdenum rod heater, meeting the precision demands of materials testing laboratories.
Reference and applicable standards include GB/T 10295 and industry standards such as GB/T 17911.8-2002 (Refractory ceramic fiber products) and YB/T 4130-2005 (Refractory materials).
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Heat flow meter method |
| Thermal Conductivity Range | 0.001–5 W/(m·K) |
| Temperature Range | 600–1600 ℃ |
| Accuracy | ≤3% |
| Repeatability | ≤3% |
| Specimen Size | φ119 × (30–50) mm |
| Heater Type | 1800-class W-Mo rod (consumable) |
| Test Atmosphere | Vacuum or purge gas capable |
| Vacuum Level | ≤1000 Pa |
| Pressure Adjustability | 0–0.1 MPa |
| Cold-Side Heat Flux Sensing | Imported high-temperature heat flux sensor |
| Software | Fully automatic test and analysis software; upper-computer connectivity supported |
| Cooling | Furnace body water-cooled |
| Power Supply (Site Requirement) | 220 V, 50 Hz |
| Laboratory Utilities | Water and power required |
| Ambient Humidity (Site Requirement) | <80% RH |
| Footprint (Site Requirement) | ~2 m² |
| Standard References | GB/T 10295; GB/T 17911.8-2002; YB/T 4130-2005 |
| Supplied Components | DRX-II-SPB main unit; control cabinet with data acquisition; refrigerated circulator; analysis software; imported heat flux sensor set; desktop computer |
