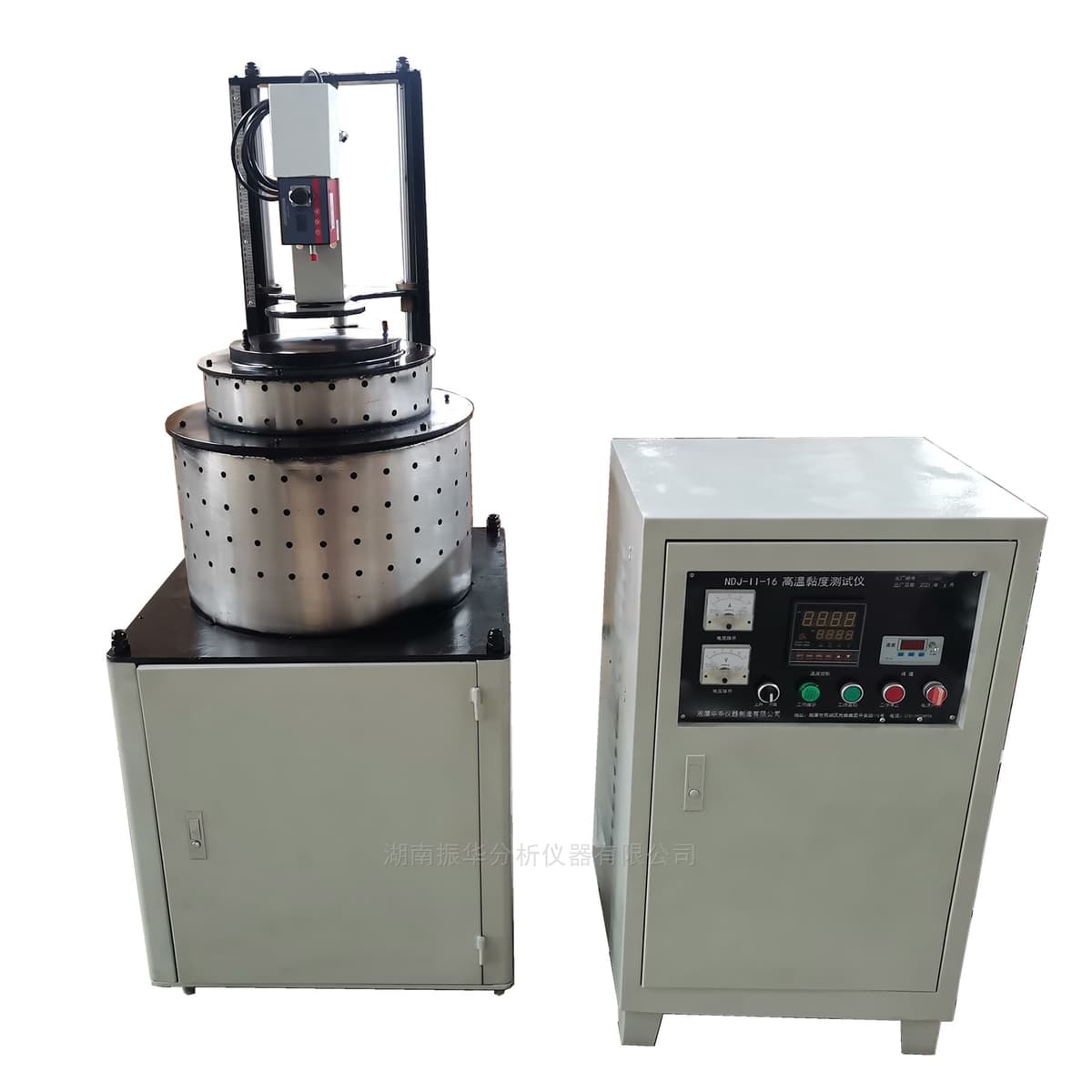

High-Temperature Viscometer
Published: 3/14/2025
A high-temperature rotational viscometer for measuring the viscosity of molten or liquid materials with automated data acquisition and real-time temperature–viscosity curve display. Suitable for research and quality control where precise viscosity characterization up to 1600°C is required.
Product Description
The instrument uses a rotational cylinder method combined with advanced sensing, an intelligent data acquisition unit, and computer software to automate the entire test workflow. Viscosity results are captured and processed by the software with online visualization of temperature–viscosity dynamics.
It supports both high-temperature and ambient tests, enabling fixed-point viscosity at constant temperature and viscosity curve determination during controlled cooling. Typical applications include the viscosity measurement of molten substances in glass, ceramics, graphite, and refractory material development and process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Rotational cylinder method |
| Test Capabilities | High-temperature and ambient viscosity measurement; constant-temperature fixed-point viscosity; cooling curve viscosity determination |
| Standards Compliance | YB/T 185-2001 (wire-suspension method) and related national/international standards; ASTM D4683-1991; calibration liquids GBW13605–GBW13608 |
| Maximum Temperature Options | 1400°C or 1600°C |
| Temperature Control/Measurement Accuracy | ±0.5°C |
| Maximum Heating Power | <12 kW |
| Viscosity Range | 0–12 Pa·s |
| Spindle Rotation Speed | 12 rpm |
| Probe Position Control Accuracy | <±0.5 mm |
| Primary Components | Rotational viscometer; sample crucible (graphite or sintered alumina); molybdenum rod test head; wire (T8MNA, 0.1–0.2 mm); thermocouple (Pt-Rh); heating furnace; intelligent temperature controller; data acquisition module; computer with data processing software |
| Supply Scope | Test host (1); graphite/alumina crucible (1); acquisition module (1 set); temperature control host (1); test software (1 set) |
Contact Us for Pricing
Interested in this product? Reach out for a personalized quote or more information. Our team will respond within 24 hours.
