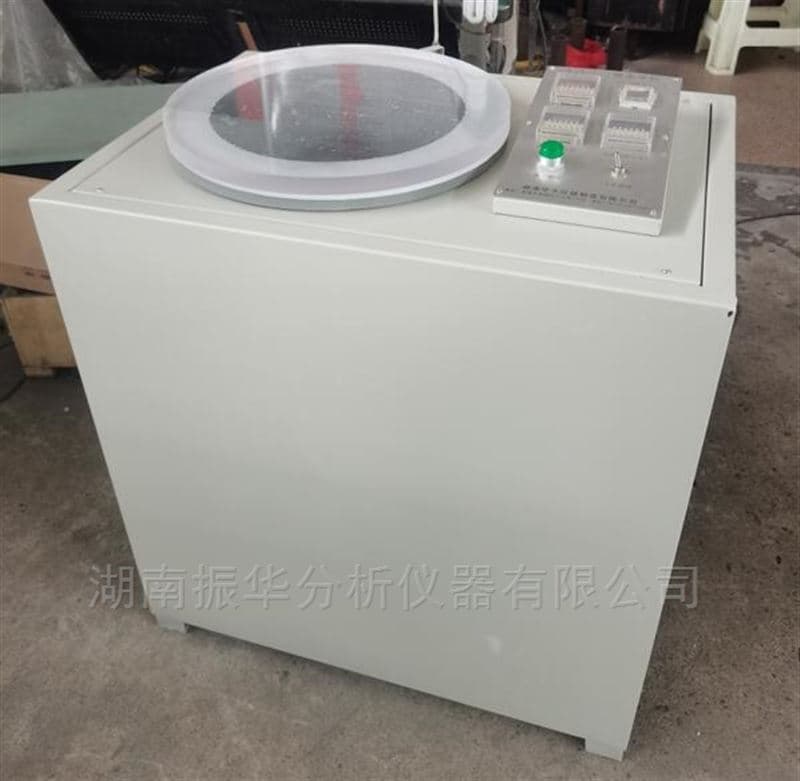

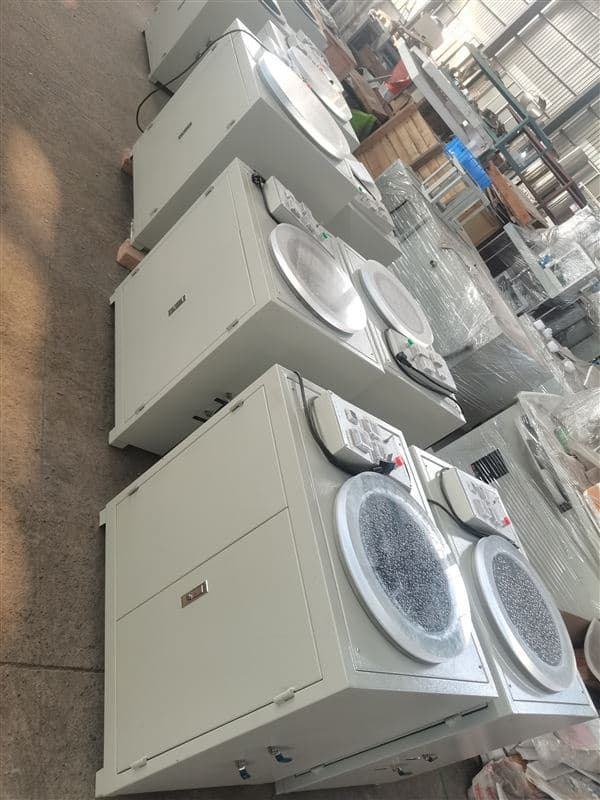

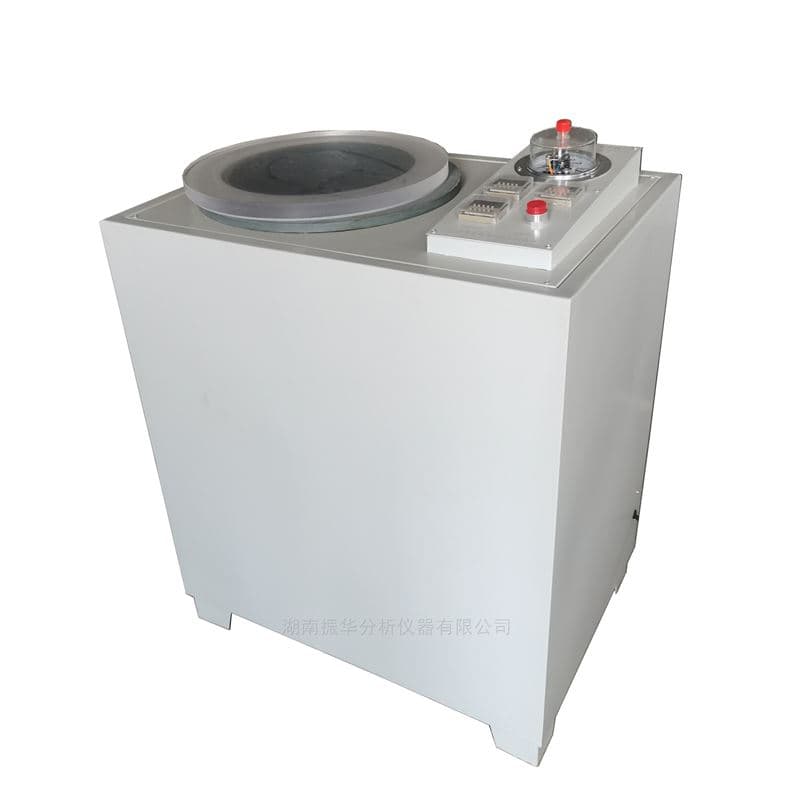

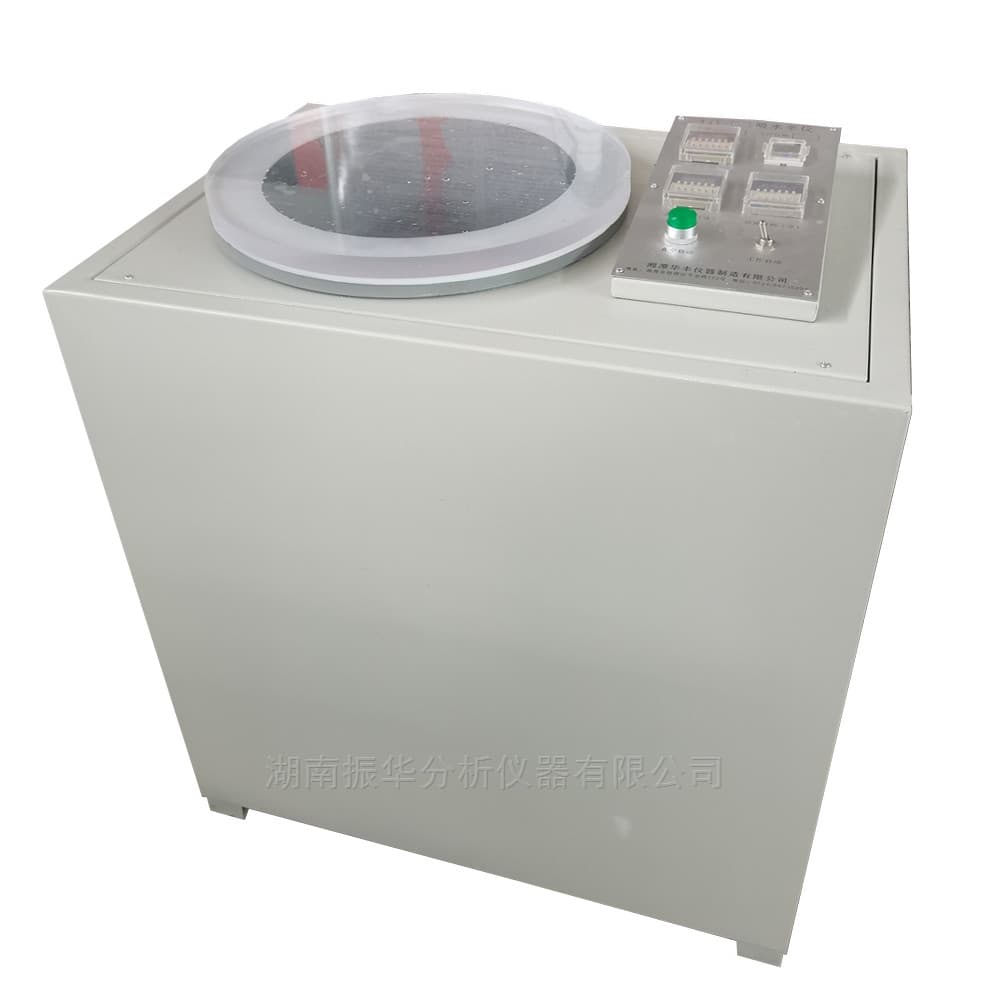

Digital Ceramic Water Absorption Tester
Published: 2/21/2025
The TXY-300 is a digital vacuum-method tester for determining water absorption, apparent porosity, and bulk density of ceramic and inorganic materials. It complies with GB/T 3299-2011, GB/T 3810.3-2016, and ISO 10545-3 for daily-use ceramics, ceramic tiles, sanitary ceramics, electrical porcelains, and refractories.
Product Description
The TXY-300 Digital Ceramic Water Absorption Tester uses a controlled vacuum immersion process to accurately evaluate water absorption characteristics and related porosity metrics of a wide range of ceramic and inorganic specimens. By integrating adjustable vacuum and timing control, the system provides consistent and repeatable measurements aligned with international and Chinese standards for ceramic materials.
Typical applications include quality control and R&D testing of daily-use ceramics, building and sanitary ceramics, electrical porcelain, refractory materials, and other ceramic products. The system includes a vacuum testing unit, a specimen rack, and a vacuum sealing gasket to support reliable test workflows.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compliance | GB/T 3299-2011; GB/T 3810.3-2016; ISO 10545-3 |
| Method | Vacuum immersion |
| Soaking Time | 0–99 h adjustable |
| Vacuum Time | 0–99 min adjustable |
| Ultimate Vacuum | ≥0.095 MPa adjustable |
| Repeatability Error | <1% |
| Specimen Chamber Size | Ø300 × 300 mm |
| Power Supply | 220 V |
| Power Consumption | 180 W |
| Standard Configuration | Vacuum testing unit ×1; Specimen rack ×1; Vacuum sealing gasket ×1 |
