Heat Flow Meter Thermal Conductivity Tester
Published: 6/3/2025
The DRH300 measures thermal conductivity and thermal resistance of insulation and building materials using a heat flow meter method. It offers automated temperature control, data acquisition, and reporting in compliance with ASTM C518, ISO 8301, and GB/T standards.
Product Description

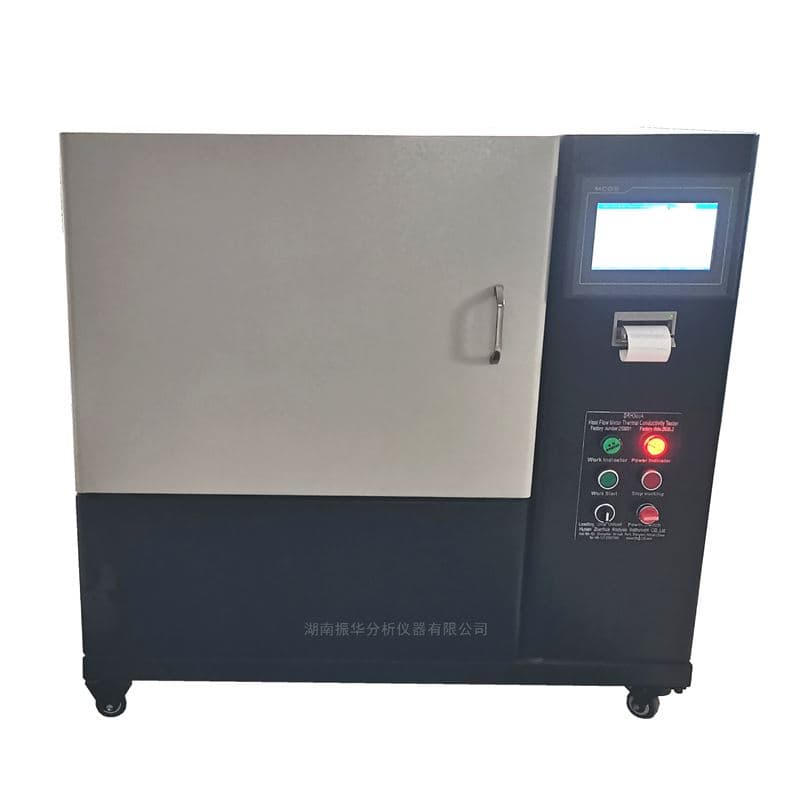

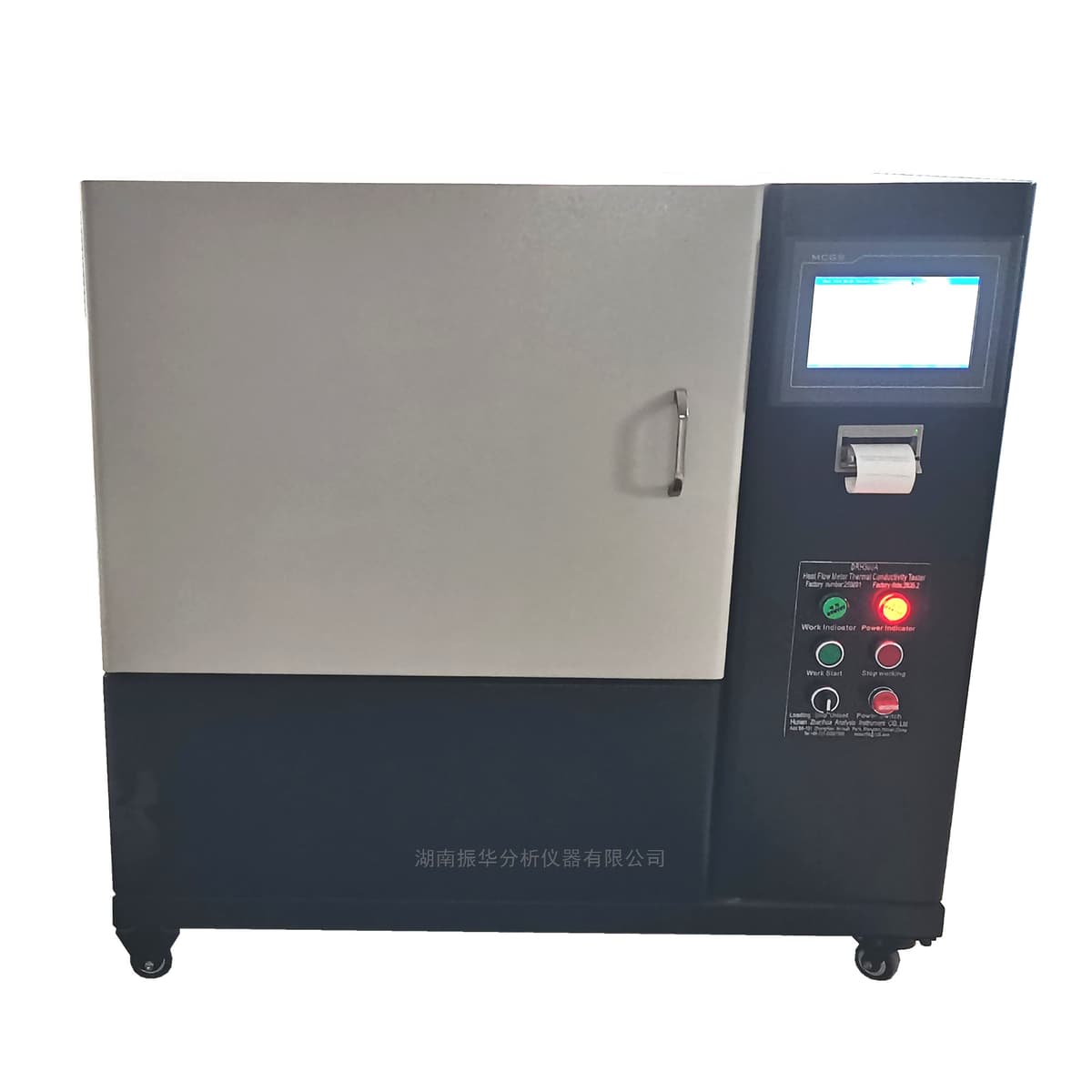

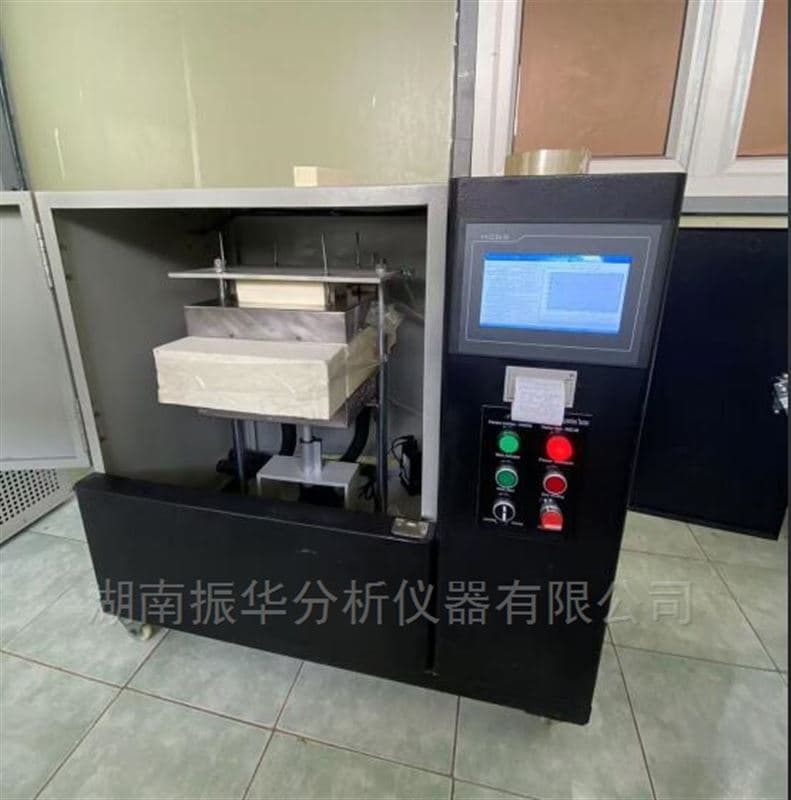

The DRH300 Heat Flow Meter Thermal Conductivity Tester is designed for steady-state measurement of flat insulating and construction materials such as boards, clays, sands, ceramics, plastics, fibers, foams, and glass. Samples are clamped between two heat flux sensors with a fixed or programmable temperature gradient, enabling rapid stabilization and high repeatability for quality control and process monitoring.

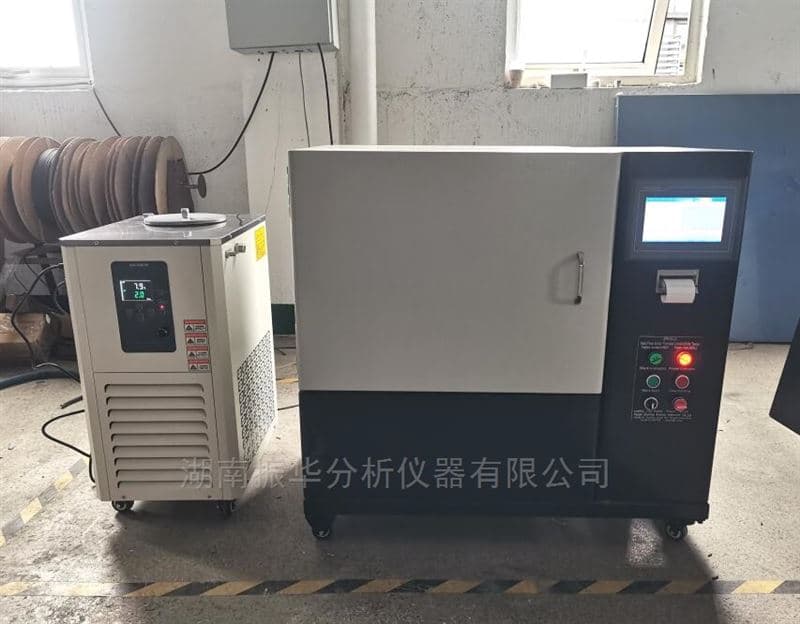

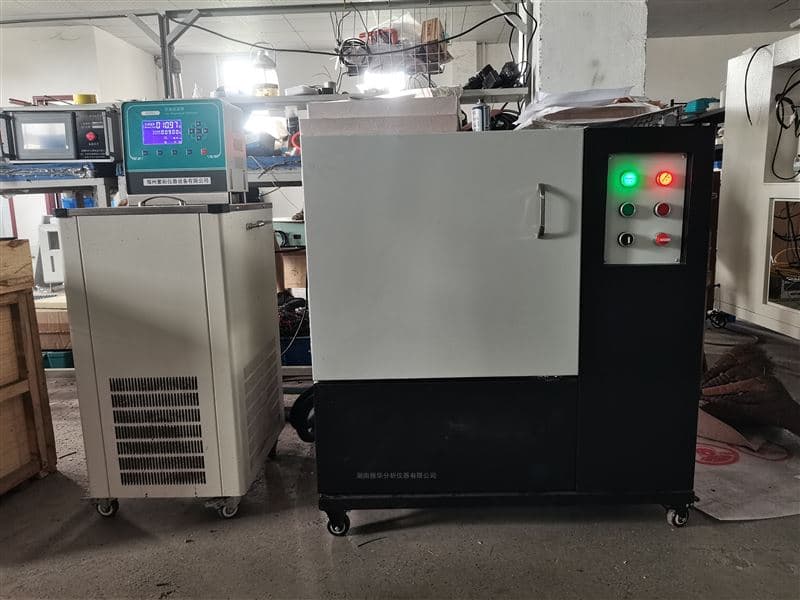

The system automates temperature control, data acquisition, analysis, and report generation. A Peltier-controlled plate assembly with external water bath cooling ensures precise temperature regulation, while motorized plate movement and automatic sample thickness measurement streamline test setup. The instrument supports embedded touch-screen operation or connection to an external computer, and stores calibration and test parameters for industrial use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Method | Steady-state heat flow meter (dual heat flux sensors) |
| Standards Compliance | ASTM C518; ISO 8301; GB/T 10294; GB/T 10295; JIS A 1412; DIN EN 12939; DIN EN 13163; DIN EN 12667 |
| Thermal Conductivity Range (DRH300 Series) | 0.005–2.7 W/(m·K) |
| Thermal Resistance Range | 0.1–8.0 m²·K/W |
| Repeatability | 1% |
| Accuracy | ±1–3% |
| Average Temperature Range (DRH300A) | 0–40 ℃, variable |
| Average Temperature Range (DRH300B) | 0–100 ℃, variable |
| Average Temperature Range (DRH300C) | −20–70 ℃, variable |
| Plate Temperature Control | Peltier system |
| Cooling System | External water bath |
| Programmable Data Points | 10 |
| Sample Size | 30 × 30 × 10 cm (W × L × Max thickness) |
| Motorized Plate Movement | Yes |
| Automatic Sample Thickness Measurement | Yes |
| Data Handling | Automatic acquisition, processing, report generation; data storage |
| Typical QC Measurement Time | <5 minutes (material dependent) |
| External PC Operation | Supported |
| Embedded Control Option | Touch-screen HMI (optional) |
| Overall Dimensions (DRH300A) | 65 × 50 × 51 cm |
| Overall Dimensions (DRH300B) | 65 × 50 × 51 cm |
| Overall Dimensions (DRH300C) | 67 × 52 × 57 cm |
| Main Components | Test host (1 set); analysis software (1 set); low-temperature water bath (1 set); external computer and printer (user supplied) |
