Ceramic Tile Stain Resistance Tester
Published: 7/16/2025
Bench-top tester for evaluating the stain resistance of ceramic tile surfaces using standardized washing fastness methods. Compliant with GB/T 3810.14-2016 and ISO 10545-14 for quality control and certification testing.
Product Description

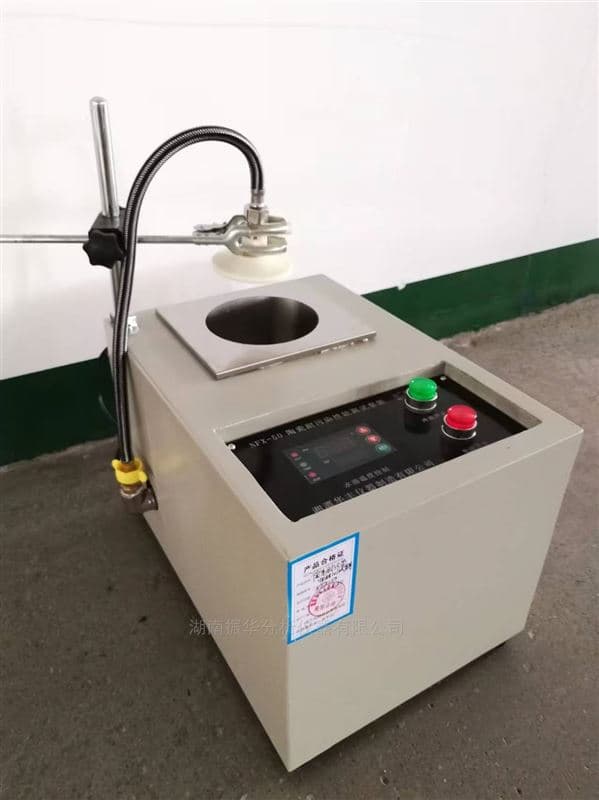

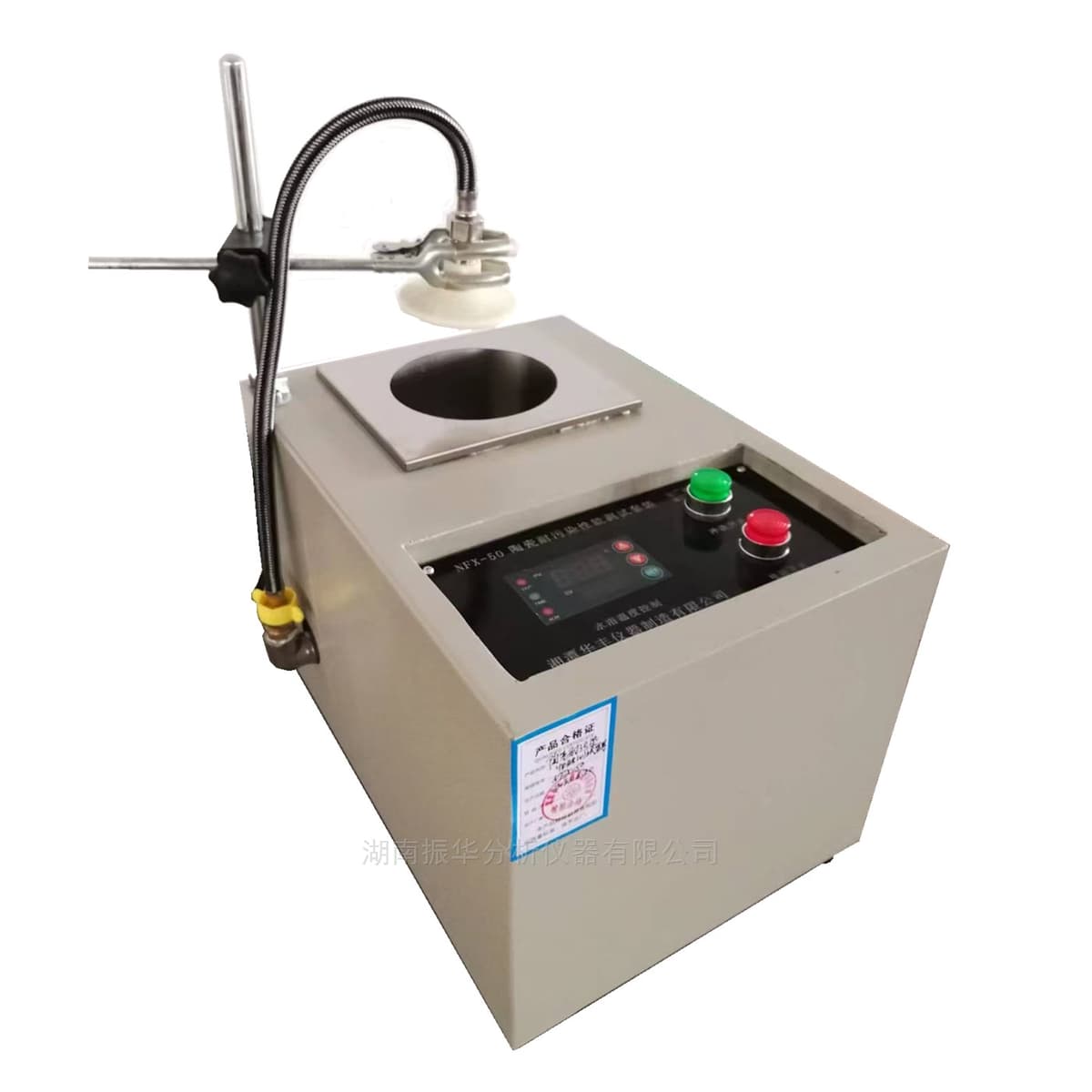

The NFX-50 Ceramic Tile Stain Resistance Tester assesses visible surface changes on ceramic tiles after exposure to specified staining agents and subsequent cleaning. The method brings test liquids or contaminants into contact with the tile face for a defined time, then cleans the surface following prescribed procedures to determine the stain resistance rating.
Designed for use in quality inspection agencies and manufacturing laboratories, the system supports repeatable testing aligned with GB/T 3810.14-2016 and ISO 10545-14. It provides controlled hot-water cleaning conditions, programmable timing, and adjustable water flow to reproduce standardized evaluation steps.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards Compliance | GB/T 3810.14-2016; ISO 10545-14 |
| Staining Agents | Selection per national standard requirements |
| Hot Water Temperature | 55 ℃ ± 5 ℃ |
| Programmable Time | 0–99 min |
| Drying Temperature | 110 ℃ ± 5 ℃ |
| Adjustable Water Flow/Pressure Range | 0–10 L/min |
| Power Consumption | ≤ 1 kW |
| Power Supply | 220 V, 50 Hz |
