Horizontal Dual Push-Rod Thermal Expansion Coefficient Tester
Published: 9/16/2025
Dual-sample horizontal dilatometer for measuring linear thermal expansion of ceramics, refractories, glass, graphite, polymers, and metal alloys. Supports fully automated testing with PC connectivity or standalone control for R&D and quality assurance applications.
Product Description

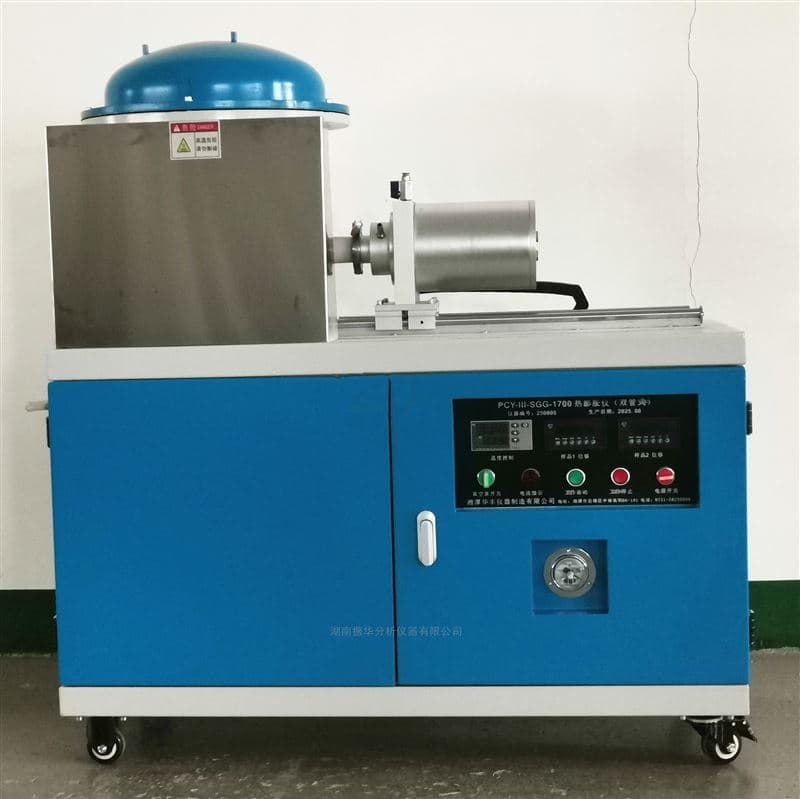

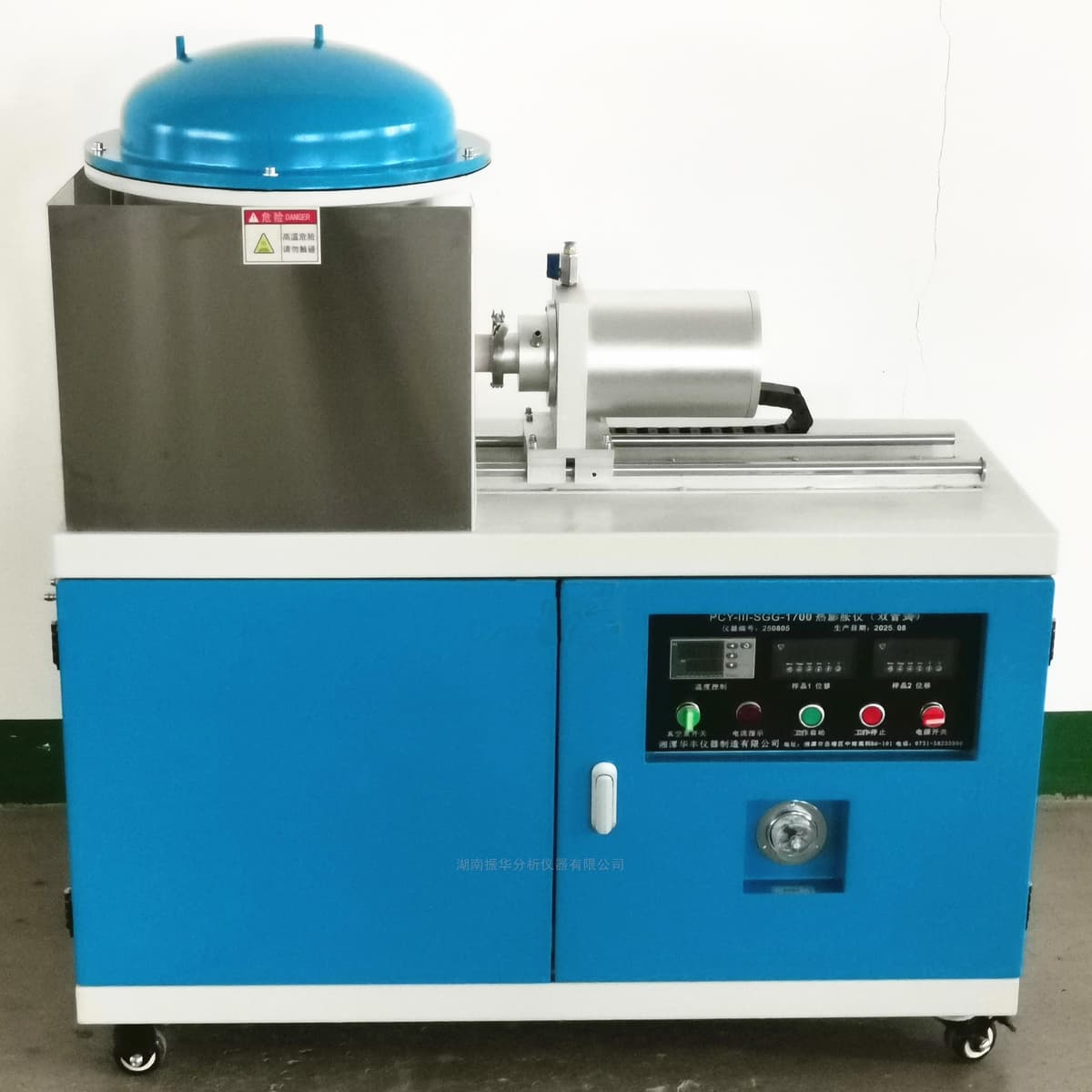

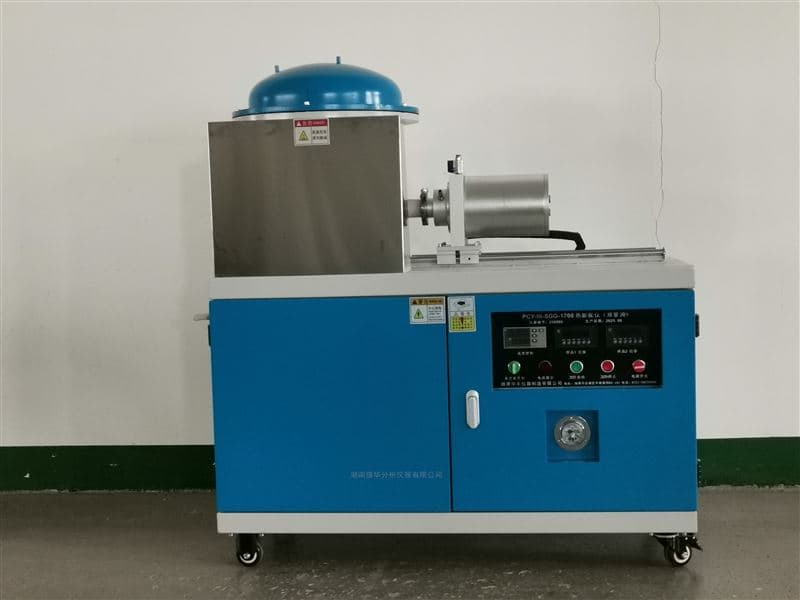

The PCY-III-SG series is a horizontal, dual push-rod dilatometer designed for expansion-method testing of linear thermal expansion. It accommodates two specimens simultaneously for comparative measurements between a standard and a test sample, improving throughput and accuracy.
The system integrates intelligent controller technology for displacement and temperature acquisition, PID-controlled heating profiles, and seamless switching between standalone operation and computer-based automated testing with analysis software. Typical applications include characterization of ceramics, refractories, glass, graphite, polymers, and metal alloys in industrial QA/QC and research environments.

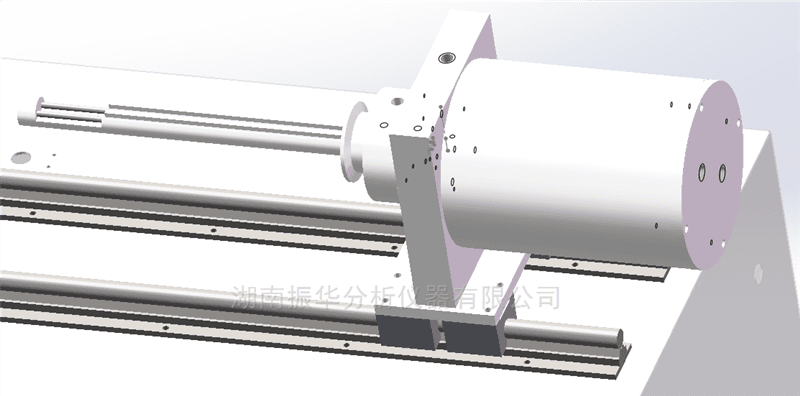

Sample preparation and testing are compatible with GB/T 32158-2015 and GB/T 3074.4. The furnace and fixture configuration are horizontal, with sample carriers available in fused quartz or alumina, and optional gas atmosphere capability; a vacuum option is available.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Temperature (Options) | 1000°C / 1400°C / 1700°C |
| Heating Rate | 0.1–30 K/min (customizable on request) |
| Control And Profiling | PID parameters adjustable; parameters editable via upper computer (PC) |
| Displacement Measurement Range | ±3 mm |
| Displacement Measurement Error | ±0.1% |
| Temperature Control Accuracy | ±1°C |
| Temperature Recording Error | ≤ ±0.5% |
| Sample Length | 25 mm or up to 50 mm (max) |
| Sample Diameter | 6–10 mm (max) |
| Displacement Resolution | 0.1 μm |
| Atmosphere | Gas purge capable; vacuum option available |
| Sample Holder Material | Fused quartz or alumina |
| Measurement Mode | Dual-sample simultaneous test or comparative method (standard vs. specimen) |
| Automation | PC connectivity for fully automatic testing; supplied with analysis software |
| Main Configurations | Test host (1 set); test software (1 set); quartz/alumina standard (1 pc) |
